Want to create database diagrams faster and more effectively? Here's a quick guide to help you streamline the process and avoid common pitfalls:

1. Set Clear Goals: Understand your business and data needs before starting.

2. Use Consistent Naming Rules: Stick to clear, standardized naming conventions for tables, columns, and constraints.

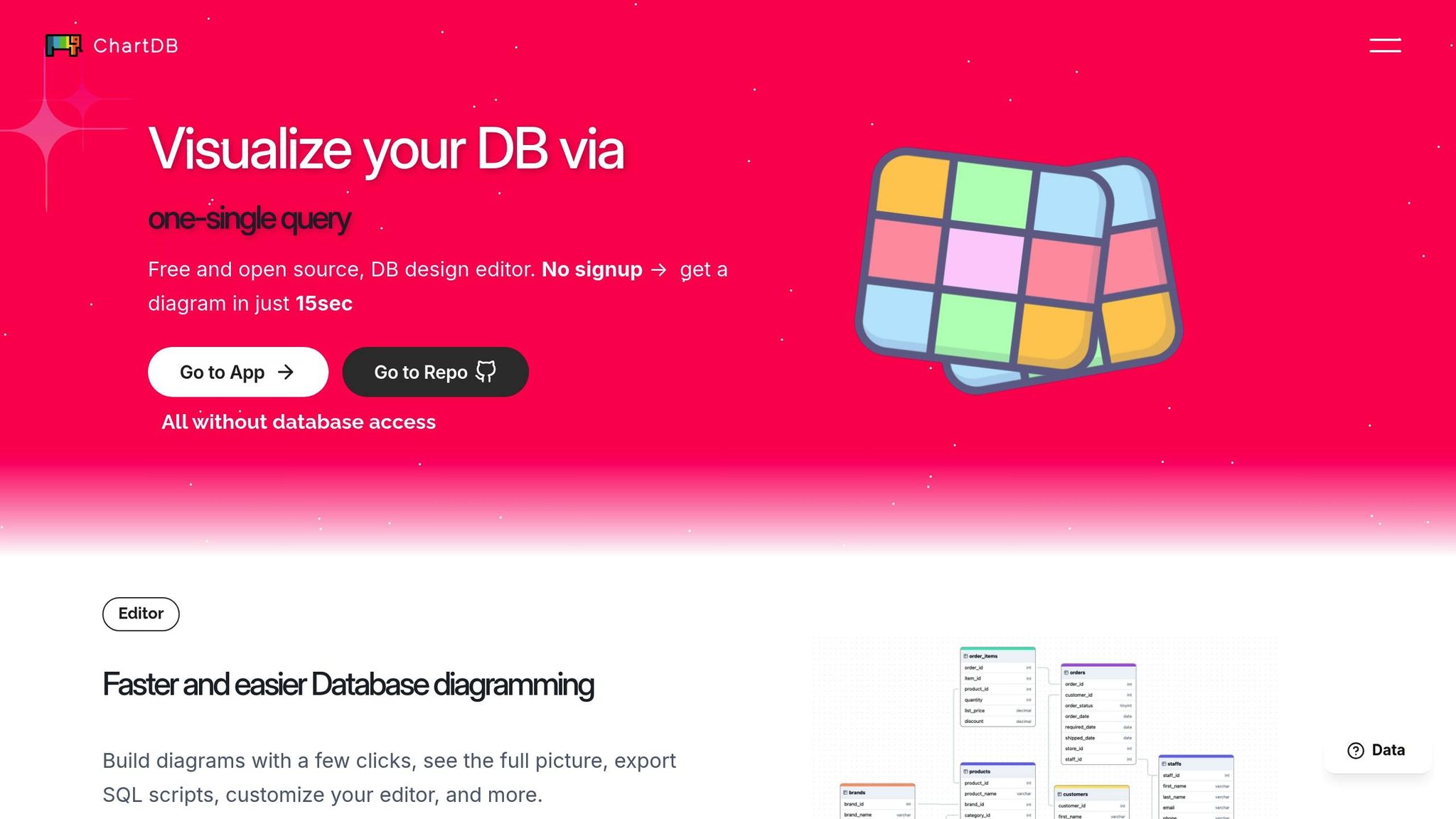

3. Leverage AI Tools: Tools like ChartDB can generate and optimize diagrams in seconds.

4. Group Related Tables: Organize tables by function or domain for better clarity.

5. Show Clear Connections: Use standard symbols and avoid overlapping lines to simplify relationships.

6. Normalize Your Database: Reduce redundancy and improve accuracy by following normalization steps.

7. Add Notes: Annotate your diagrams to explain design decisions and highlight key elements.

8. Create Clean Layouts: Use consistent spacing, alignment, and color coding for a polished look.

9. Test Your Schema: Use sample data to validate relationships, constraints, and performance.

10. Save and Share: Export diagrams in formats like SQL or JSON for easy collaboration.

Quick Overview:

These tips will help you create diagrams that are easy to understand, maintain, and scale. Start with clear goals, use AI tools, and focus on clean, organized layouts for the best results.

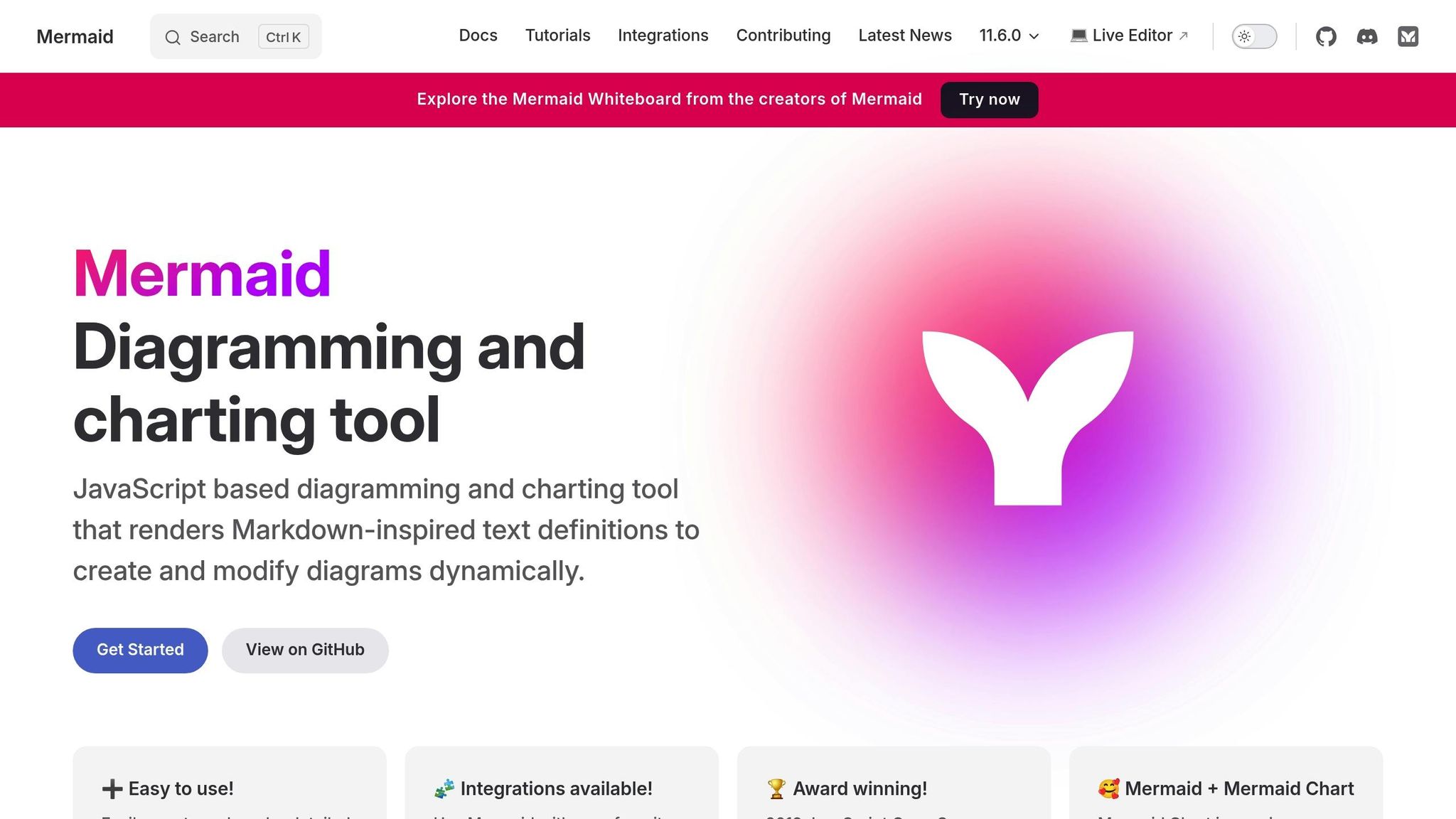

How to Create Database Diagram using ChatGPT, Mermaid ...

1. Set Clear Database Goals

Establishing clear goals for your database is essential for designing an effective diagram and ensuring it meets your needs.

Map Business Requirements

Start by identifying the key business challenges your database will address. Document the following details:

• Primary Business Objectives: What specific issues is this database designed to solve?

• User Requirements: Who will use the database, and what tasks will they perform with it?

• Data Requirements: What types of information need to be stored and accessed?

• Exception Handling: How will the system handle unusual or unexpected scenarios?

"Businesses do not spend money to create a database just to get normalisation, index, query performance and optimisation right. They invest a lump sum because there exists a crucial problem, and the problem has to be solved." - Skye Tran

A structured framework can help organize these requirements:

Once you've clearly outlined these requirements, you can use tools to refine and strengthen your design.

Use AI to Refine Requirements

AI tools can simplify the process of refining your database requirements. For example, ChartDB’s AI assistant can help by:

• Validating Schema Logic: Ensuring your database structure aligns with best practices.

• Identifying Missing Elements: Highlighting any overlooked relationships or data points.

• Optimizing Structure: Offering suggestions to improve the organization of your schema based on your specific business needs.

Careful planning and leveraging AI tools can help you create a database that effectively addresses your goals.

2. Follow Standard Naming Rules

Having clear and consistent naming conventions for your database objects is key to keeping your database diagrams organized and easy to understand. A well-thought-out naming system makes your schema more manageable and reduces confusion over time.

Choose a Naming Format

Select a naming format that works for your team and environment. Here are some guidelines to consider:

Stick to these rules: avoid special characters (use only letters, numbers, and underscores), maintain a consistent singular or plural format, use clear and descriptive terms instead of abbreviations, and align the style with your project's programming language.

Once you've defined your conventions, document them for your team to ensure everyone is on the same page.

Document Naming Rules

Include naming conventions directly in your schema diagram to ensure team-wide consistency. Tools like ChartDB make it simple to annotate diagrams and highlight these standards:

1. Add a dedicated section: Reserve a part of your diagram for naming rules.

2. Define schema object language: Specify the primary language for naming objects.

3. Standard prefixes: Clearly list prefixes for various object types:

   • PK_ for primary keys

   • FK_ for foreign keys

   • IX_ for indexes

   • TRG_ for triggers

To keep your team aligned:

• Assign a Reviewer: Choose someone to monitor and enforce the naming conventions.

• Track Exceptions: Document any approved deviations from the established rules.

• Keep It Updated: Revise the naming guidelines as your project evolves.

3. Generate Schemas with AI

AI speeds up the process of creating diagrams while helping you stick to best practices. Once your requirements are set, AI can automatically generate and fine-tune your entity-relationship diagram (ERD).

Create ERDs Automatically

Turn your database requirements into a clear ERD with AI:

• Start by preparing your database details, such as table names, columns, keys, and constraints, in plain text or SQL format.

• Submit this input to ChartDB's AI. The AI will:

  • Analyze your data to identify relationships between entities

  • Build table structures

  • Connect related tables

  • Apply standard naming conventions

• Review the generated ERD to ensure it’s organized, relationships are accurate, constraints are defined, and naming is consistent.

Use AI Schema Suggestions

ChartDB's AI also provides recommendations to enhance your database schema.

You can apply these suggestions automatically. Just make sure to review each change, confirm it aligns with your design, and keep track of any updates.

4. Group Related Tables

Organizing related tables improves navigation and keeps your schema design clear and manageable.

Group Tables by Function

Arrange tables based on their role within your business to create a logical and easy-to-maintain schema.

• Identify Domain Categories: Break down tables by their business functions. For instance, in a flight booking system, you might have categories like:

  • Security management

  • Transportation logistics

  • Booking and boarding processes

• Use Visual Cues: Apply consistent color coding to differentiate domains visually.

• Document Everything: Keep a record of which tables belong to which domain. This helps maintain order as your schema grows.

Use Auto-Grouping Tools

If manual grouping feels overwhelming, AI tools can simplify the process. ChartDB’s AI Assistant, for example, can quickly organize tables by domain, detect missing relationships, and apply color codes - all in seconds.

"Chat directly with your schema and automate complex tasks. Let the AI find missing foreign key relationships, group tables by domain, or categorize tables with colors - all in seconds." - ChartDB

Here’s a real-world example: Acme Corp used ChartDB’s AI Assistant to group tables in a 200-table schema, which improved their data reliability significantly.

5. Show Clear Table Connections

As schema designs grow more complex, it's important to maintain clear relationships between tables to keep diagrams understandable and user-friendly.

Use Standard Relationship Symbols

Standardized symbols make it easier for everyone on the team to quickly understand how tables are linked. For instance, Crow's Foot notation is a popular choice because it visually distinguishes different types of relationships. Here's a quick guide:

Stick to one notation style throughout your schema. Use solid lines for primary relationships and dashed lines for dependent or weaker connections. This consistency helps reduce confusion.

Avoid Overlapping Connections

Overlapping lines can make diagrams messy and hard to follow. Here are some ways to keep connections clear:

• Identify Key Tables: Focus on tables that are frequently referenced. For example, in a flight booking system, tables like Passengers or Flights often serve as hubs with multiple links.

• Use Shortcut Tables: Shortcut tables can simplify complex relationships and reduce the number of crossing lines.

• Strategic Layout: Arrange related tables close to each other while leaving enough space to avoid congestion. For instance, in a flight booking system, grouping entities like Security, Transport, and Booking & Boarding based on their interactions can make the diagram easier to follow.

6. Apply Database Normalization

Database normalization is all about reducing redundancy and maintaining data accuracy. By organizing your database schema properly, you can improve its overall performance and reliability.

Steps for Normalization

Normalization typically follows a series of steps, referred to as normal forms:

While there are additional normal forms, reaching Third Normal Form (3NF) is often sufficient for most cases.

Optimizing Your Schema

Using tools like ChartDB's AI features can make normalization easier. Key areas to review include:

• Eliminating Duplicate Data: Ensure no redundant information is stored across tables.

• Checking Dependencies: Verify that every attribute is directly tied to its table's primary key.

• Validating Table Relationships: Confirm that table connections align with your business logic.

ChartDB's AI Assistant can help identify missing foreign keys, group tables logically, and highlight potential normalization issues.

For instance, in a customer order system, an unnormalized table might combine customer details, orders, and product information. Through normalization, you can separate this data into distinct tables:

This structure avoids unnecessary duplication, maintains data accuracy, and boosts query performance.

7. Add Helpful Notes

Using automated grouping and layout tools is a great start, but adding clear, concise notes takes your diagrams to the next level. These notes provide direction for both current and future administrators, making your schema easier to understand and maintain.

Clarify Complex Elements

Documenting your schema improves teamwork and reduces misunderstandings. Notes can help explain your design choices and highlight key details:

Here are the key areas to document:

• Table Functions: Clearly state what each table is for.

• Attribute Details: Explain the purpose of columns and their business relevance.

• Relationship Logic: Clarify less obvious connections between tables.

• Business Rules: Note any special conditions or constraints that apply.

ChartDB simplifies this process with a color-coded note system:

• Yellow: Personal reminders

• Pink: Team communication

• Blue: Permanent documentation

• Green: Pending tasks

Track Design Updates

Keeping a record of design changes ensures everyone stays on the same page and helps track the evolution of your schema.

Version History should include:

• Major updates to the schema

• Reasons for the changes

• Impact on data

• Implementation dates

Review Notes can cover:

• Areas requiring attention

• Suggestions for improvements

• Performance considerations

• Data integrity checks

For example, in a MySQL social network model, a yellow note flagged the need to review the 'user' table, while a pink note reminded a team member to update the 'user_message' table.

ChartDB’s annotation tools allow you to tag team members, set priorities, monitor progress, and document key decisions.

8. Create Clean Layouts

Well-structured diagrams make it easier to understand complex schemas. Achieving a clean layout involves careful attention to spacing, alignment, and organization. Start by focusing on consistent spacing to make your diagrams clearer.

Set Consistent Spacing

Evenly spaced elements improve clarity and help define relationships and hierarchies in your diagram. When working with tables, aim to:

• Align related tables vertically and space groups evenly

• Avoid crossing relationship lines

• Keep functional areas clearly separated

"Alignment is the biggest contributor to diagrams looking neat, which you should care about because neat diagrams make concepts clearer, while messy diagrams make concepts more complex." - Jordan, Terrastruct

Make sure there’s enough space between tables, groups are clearly divided, and notes are placed thoughtfully. Once the spacing is in place, layout tools can help refine the design further.

Use Layout Tools

A well-organized layout not only makes your schema easier to read but also supports the accuracy of your design.

ChartDB offers automated layout features to maintain visual consistency and simplify your work. These tools include:

• Auto-Arrange: Automatically organizes elements for a cleaner look

• Smart Spacing: Ensures even gaps between components

• Grid Alignment: Aligns elements precisely to a grid

• Color Coding: Helps differentiate areas or domains

• Domain Grouping: Groups related tables for better organization

For more complex schemas, try these additional techniques:

• Group Related Tables: Organize tables into specific subject areas.

• Reduce Line Crossovers: Arrange tables to minimize intersecting relationship lines.

• Use Shortcut Tables: Place frequently referenced tables in strategic spots to cut down on clutter.

• Apply Visual Hierarchy: Adjust the size and position of elements based on their importance.

ChartDB’s tools make it easier to keep your diagrams clear and organized, even as your schema becomes more detailed. These features ensure consistent alignment and spacing while still allowing you to make manual adjustments as needed.

9. Check Your Schema Design

Reviewing your database schema is crucial to ensure it meets your requirements and performs efficiently. A detailed evaluation can reveal potential problems before they affect your production environment.

Test with Example Data

Using sample data for testing can confirm your schema's functionality and highlight any issues. Tools like ChartDB offer features to help you:

• Create test tables to validate your schema.

• Import sample data to check relationships and constraints.

• Verify constraints you've defined.

• Evaluate query performance and pinpoint areas for improvement.

When testing your schema, focus on these key aspects:

• Data Integrity: Ensure primary and foreign key relationships, unique constraints, not-null constraints, and check constraints are functioning as intended.

• Performance: Test with varying data sizes, study query execution plans, evaluate index performance, and monitor resource usage.

• Data Quality: Validate data types, check ranges, verify formats, and ensure relationship integrity.

Once testing is complete, analyze the results to identify areas for improvement.

Update Based on Reviews

After testing, use the insights gathered to refine your schema. ChartDB simplifies version control, change management, and team collaboration. To implement updates effectively:

• Document all changes clearly.

• Share updates with stakeholders for feedback.

• Test changes in a development environment.

• Apply updates incrementally.

• Validate the schema after each update.

ChartDB's tools can help you maintain data accuracy and ensure your updates align with your database objectives.

10. Save and Share Diagrams

After finalizing your schema, it's time to save and share your diagrams. This step is crucial for improving teamwork and maintaining clear documentation. The choice of export format and sharing method plays a big role in how well your design is understood and implemented.

Choose Export Options

Pick an export format that fits your specific needs:

• SQL Format: Great for directly implementing the database structure or creating documentation with precise schema definitions.

• CSV/Excel: Useful for data analysis or sharing with non-technical stakeholders who need to review table structures and relationships.

• JSON Format: Ideal for preserving diagram layouts and visual elements when collaborating with your team.

When exporting, keep the following in mind:

• Data Scope: Decide if you want to export the entire schema or just specific parts.

• File Format: Match the export format to the tools and workflows your team uses.

• Structure vs. Data: Choose whether you need only the schema structure or both the structure and its data.

• Version Control: Track different versions of your diagram for easy reference later.

Use ChartDB Export Tools

Take advantage of ChartDB's export features to streamline your work:

• For Technical Documentation: Export SQL scripts to recreate your schema, include table relationships and constraints, and retain any custom notes or annotations.

• For Team Collaboration: Use JSON exports to keep diagram layouts intact, track versions, and share via ChartDB's cloud platform.

• For Stakeholder Presentations: Export visually clean diagrams with table groupings, color coding, and consistent formatting for easy understanding.

Pro Tip: If you're using a cloud-hosted version of ChartDB, make sure you're signed in to access all export and import features. This ensures smooth sharing and prevents unauthorized access.

Conclusion: Quick Tips Review

Creating effective database diagrams is crucial for smooth development and teamwork. Here are some practical strategies to simplify the process:

• Organized Layout

  • Group related tables by domain for better readability.

  • Keep spacing and alignment consistent for a polished look.

  • Use uniform color schemes to differentiate table types.

• Automation Tools

  • Use AI tools to identify missing foreign key relationships.

  • Auto-group tables by domain for faster organization.

  • Import schemas instantly with a single query.

• Team Collaboration

  • Include detailed notes to clarify complex relationships.

  • Keep schema updates well-documented.

  • Export diagrams in formats that are easy for teams to access.

These tips provide a strong foundation for building and maintaining database diagrams. Pair these strategies with ChartDB's advanced query editor to simplify the process and ensure best practices are followed.

"Visualize your database with a single query" – ChartDB

Well-structured diagrams play a key role in efficient development and collaboration. Use templates and version control to keep diagrams up-to-date. By combining thoughtful design with ChartDB's AI features, you can create a flexible and reliable database architecture.
